Controlled Beta

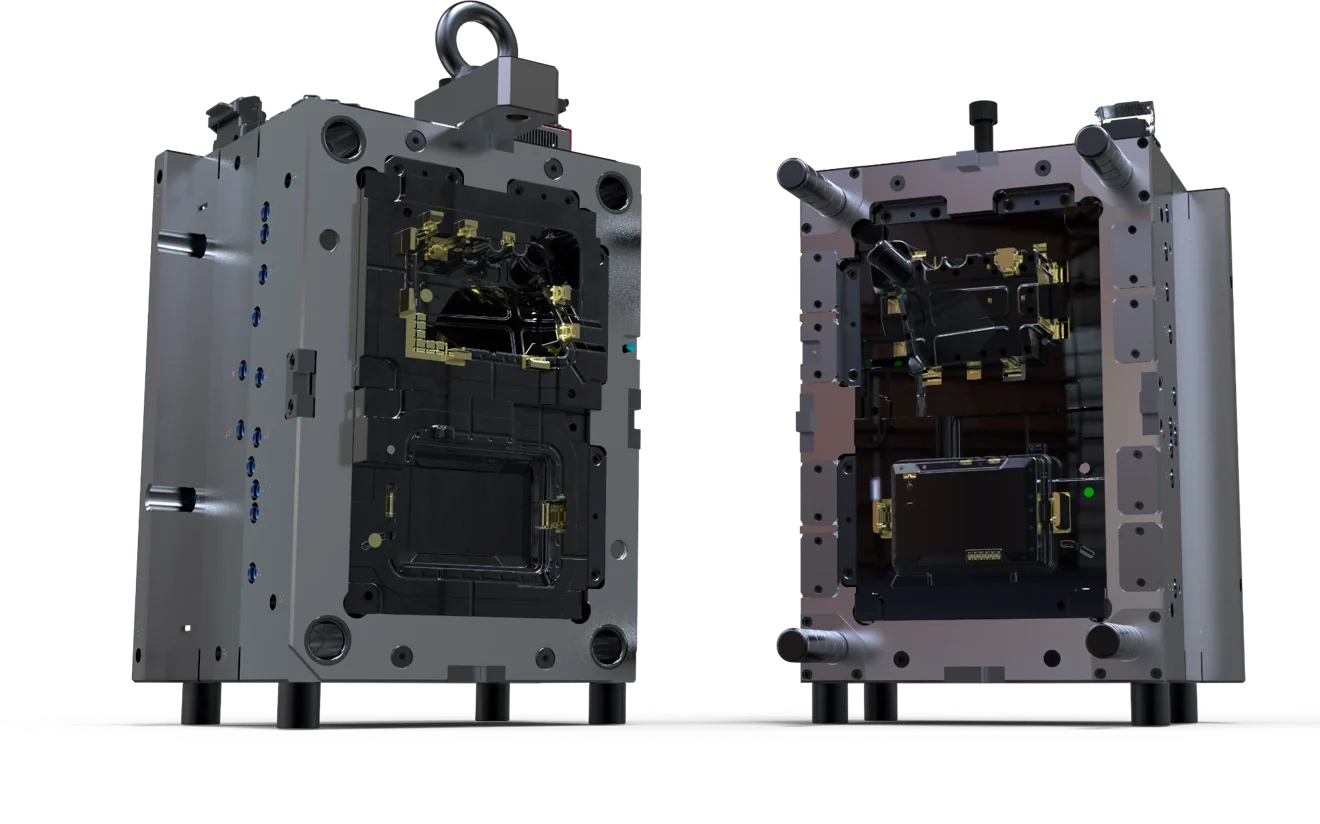

Mould Cost Calculator
A complete flow: enter your Shot Size to get Mould Size + Steel Weight, then get the right Tool Steel for the Core/Cavity and Base/Housing, and finally the total Manufacturing Cost. This tool is in controlled beta | treat results as an indicative, decision-support estimate.
View:
Quick EstimateDetailed Costing
Currency:
1 = ₹
ⓘThis exchange rate is used to convert any cost values you've already typed in (steel rates, manufacturing cost rates, etc.) so switching currency mid-way never leaves your numbers stuck in the old currency. Auto-filled with an approximate current rate | overwrite it with your own bank/contract rate if you have one, then switch currency again to re-convert.
1Shot Size
2Tool Steel
3Manufacturing Cost
•
Project Details
Name this job so it's easy to identify later | on screen, in your saved reports, and if you come back to it.
1
Shot Size → Mould Size & Steel Weight
Enter your shot size to get the mould size and steel weight instantly.
Shot Size
I know my shot size (X1/Y1/Z) directly
Part Size
Not sure | arrange cavities to compute it
Graphical Cavity Layout (drag cavities to arrange, shot size below fills in automatically)
Multi-Cavity
Same part × N | drag to arrange
Family Mold
Different parts | add types, drag to arrange
Click a cavity on the canvas below to select it, then rotate or delete just that one. Click it again (or click empty canvas) to deselect.
Machine (quick check)
Standard Layouts (PDF-based)
ⓘRunner lines show schematic flow paths (Radial/Star or Fishbone, picked automatically). Machine geometry (platen, tie-bars) stays fixed while the mould layout rotates with it. Colours distinguish mould-base, machine and fit-boundary elements.
What do the canvas colours, zoom controls and runner lines mean? View full layout guide →
⚠ There is no single industry formula for slide/lifter sizing | each entry's Size (L×W) and Direction below is your own engineering input. Direction-aware placement rule: a single-sided slide/lifter is kept on the external edge of the layout | the first row/column keeps its natural side, and the last row/column is automatically treated as rotated 180° so its mechanism also lands on an external edge (never pointing at a neighboring cavity, unless mechanisms exist on both sides). The minimum standard cavity-to-cavity margin always still applies on top of the mechanism's own size.
Each slide/lifter is drawn to scale on the Cavity Layout Designer canvas below | one set per cavity (single-cavity mould shows one set; multi-cavity repeats the set, direction-corrected per row/column, on every cavity).
Mould Block Size (X × Y × Z) | shown to the customer
|
Total Steel Weight |
⚠ Suggested Clamp Tonnage (optional check) | estimates the clamp force needed from the Shot Size (X1 × Y1) above, your part weight and material's cavity pressure. This is a costing-level estimate, not a mould-flow simulation | does not replace shot-capacity, plasticizing or fill-time checks.
Pick the Brand and Tonnage/Model in the quick panel to the left of the canvas above | it auto-fills the machine fields and drives the canvas (Tie-Bar Span/Diameter). Fine-tuning and the full fit/capacity breakdown are in the popup below.
Engineering Details & Layout Check
Machine Geometric Fit (Tie-Bar / Platen)
⚠ This checks mold-base-vs-platen geometry and shot-weight ratio only. It does not validate clamp force, injection pressure, plasticizing capacity, screw size or fill time | confirm full process suitability with your process engineer.
Weight estimate priority: exact weight you enter → wall-thickness-based shell estimate (recommended, if you don't know the exact weight) → solid-bounding-box estimate (rough upper bound, only used if neither of the above is given | ignores hollow/wall-thickness entirely, so treat it as a worst case, not a real weight).
ⓘSelect the Machine Brand first, then the Tonnage/Model | all 23 brands are included in the first dropdown. All model data (235 machines across 22 brands) is sourced directly from Hongyi's own ERP machine master (hongyijig.in → Master → Machine), not from internet research | this is your own verified machine list. Only Sunil Hydraulic has no entries yet in the ERP, so it appears in the list but cannot be selected (to avoid entering incorrect numbers) | add it to the ERP machine master, or enter values manually below for now. If you spot an odd/incorrect value for a specific model, please fix it directly in the ERP | this tool always reflects whatever is stored there. Shot Weight: if "Part Weight / Cavity" is filled in, that value × cavity-count is used (the most accurate method); if left blank, an approximate estimate is built from bounding-box volume × density × fill-factor. Cold Runner adds the Runner Allowance% (large molds may need more than 8% | adjust manually); Hot Runner adds no runner weight. Injection Pressure is for record only | a real fill-capacity check needs mold-flow simulation. Locating Ring Bore is only a reference for sprue-bush compatibility (⚠ estimated, nearest standard size); the standard series used is 63/80/100/125/160/200/250mm.
How machine selection, shot-weight estimation and locating-ring sizing work
ⓘSpacing and side margin are auto-calculated from your part size and Hongyi's documented standards; layouts come from proven PDF reference patterns. All three stay directly editable.
How cavity spacing, standard layouts and side margin are calculated View full details →
Technical Reference Table
Mould Z | formula (cross-verified against Hongyi's previous calculator, 13 Sep 2026)
A+B+C+D+E+F
A+B+C+D+E+F
A+C+D+E+F
C+D+E
B+C+D
Plates A / B / C / D / E / F (this shot size bracket)
|
2
Tool Steel Selection
The total steel weight above is split between Core/Cavity and Base/Housing in proportion to plate thickness.
Suggest a grade for me
Answer questions, algorithm picks both parts
I know exactly which steel I need
Pick Brand → Grade separately for Core/Cavity and Base
Top priority first | drives required Chromium/Nickel %
High Gloss / Mirror
Top priority
Normal Polish
Standard finish
Matte / Textured
No polish req.
3Expected Tool Life
Market-standard shot-count brackets
50,000 – 150,000
S50 / plain-carbon tier
150,000 – 300,000
P20 tier
300,000 – 600,000
Upgraded/Hardened P20
600,000 – 1,000,000
H13 / S136 tier
4Part Priority
⚙️
Functional
Fit, strength, performance
💎
Aesthetic
Visual / cosmetic part
Based on your answers above
Pick your Preferred Brand and see the final price in Section 3 (Core & Cavity Steel) below.
You've chosen to pick the steel yourself | Brand + Grade selectors for Core & Cavity (Section 3) and Base/Housing (Section 4) are directly in those sections below.
3
Core & Cavity Steel (Plates C, D)
Solid Plate
Cavity/core cut directly into C/D
Insert-Type
Smaller insert within a holder plate
Optional | leave "Any Brand" if you don't have a preference. Applies to both Core/Cavity and Base/Housing recommendations.
Manufacturing Cost (Machining / Mechanism / Labour / Trial)
Quick Estimate: Steel + hardware cost × an Industry/Complexity factor. Detailed Costing: full line-by-line cost breakup, matching Hongyi's own real mould-quote format. No factor or rate is hardcoded | everything is editable. (Core/Cavity and Base/Housing steel cost is already priced in Sections 3 & 4 above and is not repeated here.)
Quick Estimate = (Steel Cost + Slides/Lifters & Guide-Pillar hardware) × a Factor chosen by Industry + Complexity. The Factor comes from Hongyi's own reference table below (adapted from an internal costing sheet) | always editable, since no single public benchmark exists for this ratio and it varies job to job.
⚠ This is an engineering cost estimate for benchmarking and planning | not an official quotation. It is based on the inputs you entered, our standard reference tables, and the steel rate you typed in at the time | rates fluctuate daily, and this figure reflects only that moment. Manufacturing Cost is a factor-based estimate, not a full line-item audit. Actual supplier quotations may vary based on final design, scope, commercial conditions and execution assumptions. Hongyi JIG Rapid Technologies (operating as Veroqen™) is not liable for business decisions made solely on this tool's output.
Mould Cost Calculator | Reference
What this calculates, and who it's for
This tool converts a shot size (or a part-size cavity layout) into an indicative mould block size, tool steel selection, and manufacturing cost | for toolmakers preparing a first-pass estimate, OEM engineering/procurement teams sanity-checking a supplier quotation, and mould suppliers presenting assumptions transparently to a buyer.
Required inputs
Shot Size (X, Y, Z) — or a Part Size layout with cavitation, if you don't have a shot size yet
A STEP file (.step/.stp) — optional, auto-fills Part L/W/H in Part Size mode from the real CAD bounding box, instead of measuring manually
Expected tool life / production volume
Part material and required surface finish
Steel rate (₹/kg) — today's rate, or a suggested market ratio
How the calculation works
Mould block size is derived from your Shot Size plus a side margin, looked up from Hongyi's own Mould Quality Standard reference table. Steel weight is computed from block dimensions × material density, split between Core/Cavity and Base/Housing by plate thickness. Tool steel grade is recommended from your tool-life tier, part material's tensile/hardness, and required finish. Manufacturing Cost is either a Quick Estimate (Steel + hardware × an Industry/Complexity factor) or a full Detailed Costing line-item build-up matching Hongyi's own commercial mould-quote format.
Not included: mould-flow simulation, DFM approval, guaranteed final quotation, machine-specific process validation (shot capacity, plasticizing rate, fill time)
Worked example
Input
Value
Shot Size (X × Y × Z)
180 × 120 × 50 mm
Mould Block Size (result)
340 × 280 × 655 mm
Total Steel Weight (result)
489.5 kg
This is the tool's own default/baseline scenario | shown here as a worked illustration.
FAQ
Why was my Suggested Clamp Tonnage much too high?
Before a September 2026 fix, tonnage was calculated from the full mould-block area rather than the actual part area. This is now fixed | it uses the real shot/cavity footprint.
Why can't I choose a Mould Base/Housing Steel grade?
By default it's auto-recommended (economical Local S45C for most tool-life tiers). Use "Pick Base/Housing steel manually" in Section 4 to override it independently.
Why was the shot-weight estimate wrong?
Without a wall thickness or exact weight entered, it previously treated the full bounding box as solid. There's now a Wall Thickness field for a proper shell-based estimate, and an exact weight entry is always used first when given.
Can I auto-fill dimensions from my CAD file?
Yes | in Part Size mode (Multi-Cavity or Family Mold), use "Import STEP File" to upload a .step/.stp file and auto-fill Part L/W/H from its real CAD bounding box. This happens entirely in your browser | the file is never uploaded anywhere.
Who operates this: VEROQEN™ is a product/brand developed and operated by Hongyi JIG Rapid Technologies. References to "Veroqen™" below mean Hongyi JIG Rapid Technologies, operating under the VEROQEN™ brand | Veroqen™ is not a separate legal entity.
Status: Veroqen™ Mould Cost Calculator is in Controlled Beta, made available to a limited, invited group of users via an access code. It is not a public commercial product yet.
What this tool is: An engineering estimation tool that calculates an indicative mould cost from the shot size, part, steel and machine details you enter, combined with Veroqen™'s own standard reference tables (margin, plate thickness, tool-life recommendations, manufacturing-cost factors). It is a decision-support estimate for budgetary planning | not a formal quotation, and not a substitute for drawing review and toolmaker sign-off.
Accuracy: Results depend entirely on the accuracy of what you type in (steel rates, dimensions, cavitation, machine selection) and on reference data that can go out of date (steel prices fluctuate daily; machine and factor tables are periodically revised). We do not guarantee that any figure shown will match an actual supplier quotation.
No liability: Hongyi JIG Rapid Technologies (operating as Veroqen™) is not liable for business, purchasing, or investment decisions made solely on this tool's output. Use it as one input among several, not as the sole basis for a commercial commitment.
Access code: Your Beta access code is personal to your invite batch | please don't share it publicly. It is a soft access control, not a security mechanism, and may change between Beta batches.
This tool runs entirely in your browser. It is a static, client-side calculator with no backend server | the shot size, material, steel and machine details you type in are used only to compute your result on your own device and are never transmitted to Veroqen™, Hongyi JIG, or any third party automatically.
What is stored locally: Two small flags are saved in your browser's local storage, on your device only | whether you've entered the Beta access code, and whether you've already submitted the feedback prompt. Nothing else is saved between visits, and nothing is synced to a server.
Feedback form: If you submit the feedback popup, it opens your own email app with a pre-filled message addressed to hello@hongyijig.in | you choose whether to actually send it. We only receive what you send via that email, nothing is captured automatically.
PDF reports: Reports are generated and rendered locally in your browser (via your browser's own print/save function) | Veroqen™ does not receive a copy unless you choose to share it with us.
No cookies, no trackers, no analytics are used on this tool in its current Beta form.
Refund & Cancellation Policy
Current Beta: Access to this tool during Controlled Beta is by invite and access code only | there is no payment or subscription involved, so no refund is applicable at this stage.
When paid access launches: Since a generated report is a digital deliverable (not a physical good), once a report has been successfully generated it is generally considered delivered. A refund will be considered only if the tool produced a materially incorrect result due to an error on our side (e.g. a broken calculation, not a difference of engineering judgement or a change in your own input assumptions).
How to request one: Email hello@hongyijig.in with your Report ID (shown on every generated report) and a description of the issue | we'll review and respond within a reasonable time.
How Veroqen™ Calculates | Methodology & Limitations
Mould size from shot size: Mould block size is derived from your Shot Size (X, Y, Z) plus a side margin. That margin is looked up automatically from Hongyi's own "Mould Quality Standard & DOP Agreement" reference table (matched to the smallest documented row that covers your shot size), and can be manually overridden.
Steel weight & cost: Plate weights are computed from the mould block dimensions and each plate's material density, then priced using the steel rate you enter (or a suggested rate ratio, for grades we have real market-price evidence for). Core/Cavity and Base/Housing are costed separately since they're typically different steel families.
Steel grade recommendation: Suggested grades are ranked by a tool-life tier matched to your expected production volume and part requirements (e.g. corrosion resistance, surface finish) | this is engineering guidance, not a rigid rule; your own toolmaker's judgement should override it where they differ.
Manufacturing Cost (Quick Estimate): Calculated as Steel Cost + Slide/Lifter and Guide-Pillar hardware, multiplied by an Industry × Complexity factor. This factor table is a starting engineering-judgement estimate, not yet back-tested against a large set of historical mould costs | you can always override the factor directly once you have your own benchmark data.
Manufacturing Cost (Detailed Costing): Built up as a line-item table (EDM electrodes, trial material, checking fixtures, etc.) that you fill in directly, for cases where you already have itemised cost information.
Machine Geometric Fit: Checks mould-base-vs-platen geometry and shot-weight ratio only. It does not validate clamp force, injection pressure, plasticizing capacity, screw size or fill time | confirm full process suitability with your process engineer.
Known limitations (being actively worked on): (1) The Core/Cavity vs Base/Housing weight-split assumption hasn't yet been validated against a large sample of real historical moulds. (2) The Quick Estimate industry/complexity factor table hasn't yet been back-tested against historical mould cost records. Until both are validated against real data, treat every result as an indicative estimate for planning | not a guaranteed figure.
Report ID & Engine Version: Every report shows a unique Report ID (identifies that specific report) and an Engine Version (identifies which version of the calculation logic produced it). There is no backend database in this Beta | we can only match a Report ID back to your inputs and result if you share the PDF/report itself with us.
Cavity Layout Guide | Canvas, Runners & Mould Base
Canvas controls: "Fit to Screen" fits everything (layout/tie-bar/mould-base) back into view, and also auto-fits whenever a new layout/preset is applied. Use the zoom buttons to zoom in/out manually. "Runner Gate Position" chooses whether the runner connects at each cavity's nearest edge (side gate) or at the cavity's centre (direct/pin gate).
Runner network: reaches every cavity | 1, 3, 7, or any other count, none skipped | using the two real named runner topologies. When cavities are roughly equidistant from the sprue (checked automatically), a Radial/Star layout is used (equal spokes, naturally balanced, like PDF Fig 7-24); otherwise a Fishbone/Herringbone layout is used (one main trunk + row branches + short per-cavity drops | naturally unbalanced but the standard, most efficient layout for many/uneven cavities). Since a Fishbone run is naturally unbalanced, and a Family Mold can't be length-balanced anyway (the parts are different shapes), it is instead balanced the real way | by runner diameter: each cavity's final drop is drawn thicker for a bigger-volume part and thinner for a smaller one (the exact diameter still needs mould-flow simulation | this is a schematic direction, not a calculated value). Every bend/junction gets a round joint | real runner design never uses sharp corners (flow hang-up, pressure spikes).
Dragging & alignment: Drag boxes with the mouse | golden guide-lines appear as you get close to alignment, and the gap distance in mm is shown. Red border/gap = overlap or less than the recommended spacing.
What the colours mean: The thick dark-brown line = runner (simplified single-line style). Blue-tinted rectangle with a dot grid = the machine's Die Platen (full plate size + a schematic mould-mounting bolt-hole pattern, shown once a machine model with platen data is selected) | this, the tie-bar posts, the mounting-hole grid and the dimension lines are all part of the machine and never rotate. Dark round posts at its corners = the 4 tie bars; blue dashed outline = Tie-Bar Clear Span (the actual usable opening between the tie bars | your mould base must fit inside this, not the platen); red dimension lines = "Dist. between tie bar H/V", exactly like a real machine's platen drawing. Golden-tinted dashed rectangle = Suggested Mould Base | this, and everything inside it (cavities, guide pillars, clamp marks etc.), belongs to the mould and rotates together as a rigid body when you click "Rotate Layout 90°" | including which pair of edges physically carries the clamp slots.
Rotating the layout: Use "Rotate Layout 90°" to turn the whole cavity layout | since on a real machine the two clamps/tie-bar columns always sit left and right as you face it, rotating lets you match your layout's longer side to whichever tie-bar direction is actually wider.
Inside the mould-base rectangle (standard top-view convention): solid circles = Guide Pillar/Bushing (visible from top); dashed circles = Return Pin (hidden, below the parting line); dashed strips (sides) = Spacer/Support Rail (hidden); dashed rectangle in the middle = Ejector Plate outline (hidden); double line (on the edges) = Clamping Slot area. This follows the standard hidden-line drafting convention (solid=visible, dashed=hidden) | confirm exact position/size from your actual mould-base drawing/LKM catalog.
Standard mould housing (scales with part/mould size): as the part gets bigger, the whole housing scales together | Side Margin (from Hongyi's own documented table), Guide Pillar diameter, Return Pin diameter (≈0.8× the guide pillar, per standard practice), and Locating Ring diameter (nearest standard size). The Tie-Bar Diameter (machine side, not stored in the ERP) is auto-estimated from the tie-bar span but is directly editable | enter the real value from your machine's spec sheet and the platen drawing updates to match.
Beyond 1300mm (the confirmed standard 2-plate mould-base catalog limit), the tool flags the mould base as needing custom fabrication rather than pretending a rounded number is a catalog size.
Standard Layouts are taken from the PDF ("Part & Mold Design" guide, Figure 7-24 "Spoked Runners" | 8-cavity circular, and Figure 7-25 "Naturally Balanced Runners" | row/branch pattern). Grid options are auto-generated from the divisors of the current cavity-count.
Side Margin is auto-set from Hongyi's own "Mould Quality Standard & DOP Agreement" (Section 4.2, "Injection Mould Size Evaluation Based on Short Size Parameters" table) | it looks up the smallest documented row that covers your current shot size (X1/Y1/Z) and applies that row's Column M value automatically, so the margin always matches the documented company standard rather than a guess. You can still override it manually (typing a value stops the auto-update); click "↺ Use Standard" to go back to the table value.
